Parker 2520 XLD Sport Cabin, the Deep-V Middle Child That Sells Itself

A 25-foot 4-inch Beaufort-built pilothouse boat with a 21-degree hull, 179 gallons, a plumbed head and the choice of one or two outboards up to 500 hp.

Discontinued Updated October 2026

Photo: Parker Boats, courtesy of the builder, source

Length: 25.3 ft7.72 m
Beam: 9.5 ft2.9 m
Cruise: 1.4 ft0.43 m
Cabins: Enclosed pilothouse with a cuddy cabin in the bow
Used price: $50K to $200K

On this page

Overview
What the D in Parker 2520 XLD actually buys you
Beaufort workboat DNA
Pilothouse, cabin and the plumbed head
Cockpit and fishing layout
Single versus twin outboards
Seakeeper Ride and the 257 Explorer
Ownership and the used market
Specifications
Price and value
Strengths and weaknesses
Used buyer checklist
Rivals
Our verdict
FAQ

The Parker 2520 XLD Sport Cabin is the deep-V version of Parker's 25-foot pilothouse boat, with a 9-foot 6-inch beam, 5,800-pound dry weight, 179 gallons of fuel and up to 500 hp. It listed at $204,062 in 2025 before becoming the 257 Explorer.

Best for

Year-round offshore fishing
Northeast and Pacific Northwest anglers
Small charter operators
Couples who want a dry ride and a real head

Parker 2520 XLD Sport Cabin by the numbers

Plan view drawn to scale from the published length and beam.

Horsepower per ton: 172 hpVery high power to weight, built for speed.
Displacement hull speed: 6.3 knThe efficient cruising speed for a displacement hull of this waterline.
Length to beam ratio: 2.67 : 1A beamy hull with lots of volume for its length.

Length compared with the 127 center consoles & offshore boats we cover

Parker 2520 XLD Sport Cabin

16 ft67 ft

What the D in Parker 2520 XLD actually buys you

Search for the Parker 2520 and you will find two boats that look nearly identical from the dock: the 2520 XL Sport Cabin and the 2520 XLD Sport Cabin. Both are 25 feet 4 inches long with a 9-foot 6-inch beam, and Parker listed them side by side from at least the 2007 model year through 2019. The difference is underneath.

Parker's 2017 specifications show the XL with 16 degrees of transom deadrise, 5,300 pounds dry, 156 gallons of fuel and a 450 hp maximum. The XLD carries 21 degrees of deadrise, 5,800 pounds, 179 gallons and up to 500 hp. In other words, the XLD is the deeper, heavier, longer-range offshore version, and the flatter XL should be steadier at rest and need less power. By 2024 only the XLD remained in Parker's lineup.

Beaufort workboat DNA

Beaufort, North Carolina, sits beside the stretch of ocean known as the Graveyard of the Atlantic, and Parker is a product of the town's long boatbuilding tradition. The family's start in the business reaches back to the late 1960s, and Boating credits Linwood Parker's 25-foot Sou'wester workboat, early in the following decade, as the first production Parker. Overbuilt and underpriced was the family's own shorthand for decades, and the company still counts commercial, government and recreational buyers among its customers.

In 2019 Linwood and Trudy Parker sold the business to Correct Craft, which renamed it Parker Offshore, expanded the Beaufort plant and kept the sport cabins in production. Under the new owner the 2520 XLD gained standard Seakeeper Ride and electronics packages before its 2026 renaming as the 257 Explorer.

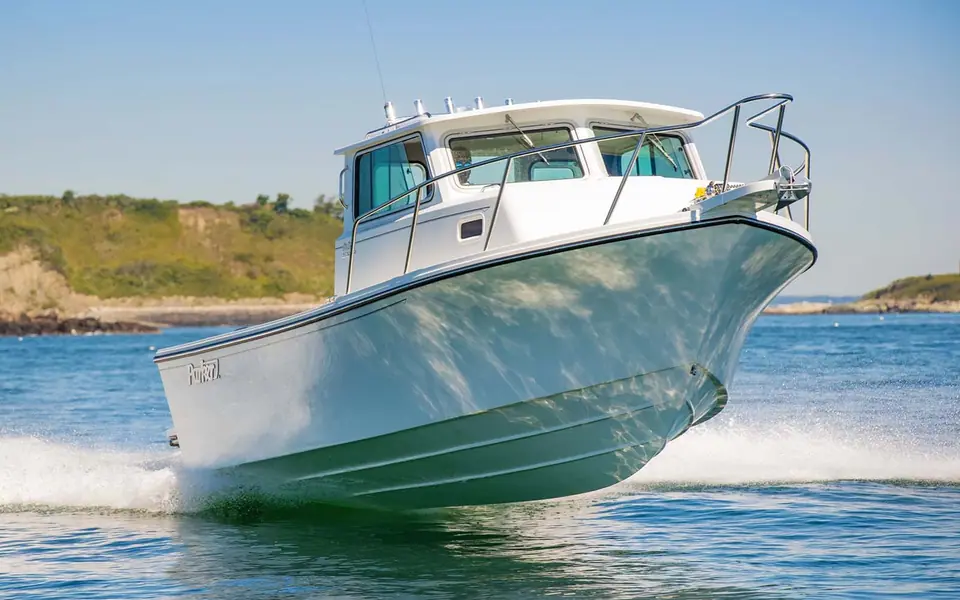

Parker 2520 XLD Sport Cabin from the bow quarter running past a headland. Photo: Parker Boats, courtesy of the builder, source

Pilothouse, cabin and the plumbed head

Compared with the 23-foot 2320, the 2520 XLD is a real jump in usable space. The wheelhouse is close to 5 feet fore and aft, nearly 7 feet across, and offers about 6 feet 4 inches of headroom, so most adults can stand upright. Both windshield panels open, the sliding side glass is screened, and the helm and passenger each get a ladder-back seat with a footrest, with storage-base companion seating behind them.

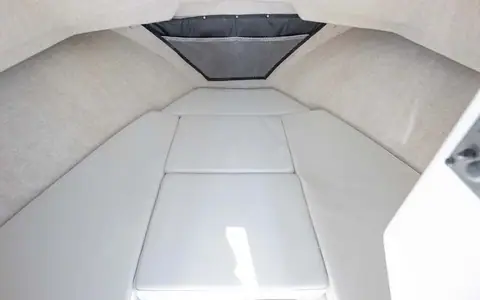

Behind a lockable door and companionway hatch, the bow cabin holds a pair of twin bunks that together span roughly 76 by 64 inches, under a little less than 4 feet of headroom, lit by portlights and a deck hatch. By the 2014 model year a plumbed electric toilet with macerator and holding tank was standard here, something the smaller 2320 never offered as standard, and that alone changes how a family or a mixed crew can use the boat. Buyers could also order a pilothouse galley unit with a sink, 12-volt fridge and stove.

Cockpit and fishing layout

Aft of the house, the self-draining cockpit gives roughly 9 feet of length, a little over 7 feet of width and about two feet of depth to the gunwale. The transom is solid, with the outboards hung on a bracket that doubles as a swim step with a boarding ladder, and a walk-through door, an insulated fish box and a baitwell are built in. Later boats arrived with more fishing gear as standard: a pair of macerated in-sole fish boxes aft, a 35-gallon well, a six-rod rocket launcher, four rod holders in the gunwales and padded coaming bolsters.

Options over the years included an anchor windlass, a second station in a freestanding or bulkhead console or in an aluminum tower, SeaStar power-assisted steering, a bow thruster, Seaspension seats and a folding cockpit lounge. A 2520 XLD with a tower and second station makes a capable offshore trolling boat for a two- or three-person crew.

Single versus twin outboards

The 2520 XLD is rated for 500 hp, so it can run a single big outboard or a pair of mid-size engines. In 2025 Parker offered a single Yamaha F300 or F350, or twin F150s or F200s. In 2017 the published power packages included the Yamaha F200 XB and F300 UCA.

A single F300 or F350 is cheaper to buy, maintain and eventually repower, and leaves more cockpit room. Twins give redundancy for offshore runs and resale appeal in the Northeast and Pacific Northwest. Parker's 2027 pricing for the 257 Explorer shows the gap: $176,897 with a single F300 against $214,777 with twin F200s. We found no published speed and fuel test specific to the 2520 XLD, so ask sellers for their own data and test with your typical load.

Seakeeper Ride and the 257 Explorer

By 2025 Parker fitted the 2520 XLD with a Seakeeper Ride 450 system as standard, replacing conventional trim tabs with active blades that reduce roll and pitch underway. For 2026 and 2027 the boat appears as the 257 Explorer, with the same 25-foot 4-inch length, 179-gallon tank and 500 hp rating, though Parker now publishes a 9-foot 7-inch beam, 6,480-pound dry weight and 19-degree deadrise. We found no Parker statement on whether the hull itself changed.

Seakeeper's own sea trial of a 257 Explorer with twin Yamaha 250s off Morehead City in April 2025 recorded 41 percent roll reduction and 43 percent pitch reduction at 31 mph in two-foot beam seas. For buyers comparing a late 2520 XLD with an older one, Seakeeper Ride is the most significant equipment difference.

Ownership and the used market

The 9-foot 6-inch beam is over the legal trailering width in most states, so expect to need a permit if you tow, and many owners keep these boats on a lift or in a dry-stack barn instead. Plan on something like $7,000 to $15,000 annually for storage, coverage, engine maintenance and fuel, and more with a pair of outboards.

Older hulls hold up well, and condition of the engines, pilothouse windows and cockpit sole matter more than year. Parker sells through a dealer network of more than 50 locations, which helps with parts and service when buying used far from North Carolina.

Parker 2520 XLD Sport Cabin specifications

Length overall	25.3 ft7.72 m
Beam	9.5 ft2.9 m
Draft	1.4 ft0.43 m
Displacement	5,8 lbs2,631 kg
Fuel capacity	179 gal678 L
Cabins	Enclosed pilothouse with a cuddy cabin in the bow
Berths	Two twin bunks in the bow, about 76 by 64 inches overall
Heads	One, an electric toilet with macerator and holding tank
Maximum persons	12
Standard engines	Single Yamaha F300 or F350, or twin Yamaha F150 or F200 (2025 packages)
Optional engines	Earlier boats offered with Yamaha F200 XB or F300 UCA packages
Maximum power	500 hp
Hull type	Deep-V planing hull, 21 degrees of deadrise at the transom, flared Carolina-style bow, full transom carrying an outboard bracket
Hull construction	Foam-filled fiberglass hull, deck through-bolted to hull
Builder	Parker Marine Enterprises, Beaufort, North Carolina (owned by Correct Craft from 2019 and branded Parker Offshore), United States
Naval architect	Parker in-house design
Status	Discontinued

Figures come from builder documentation and independent tests where available. Displacement is usually quoted light, so a loaded cruising boat will weigh more. Compare these specs with another model.

How much does a Parker 2520 XLD Sport Cabin cost?

New, typical sail-awayNo longer built

Used, typical asking$50K to $200K

Yearly running costs$7K to $15K

Parker's 2025 site listed the 2520 XLD SC at $204,062 MSRP, with Seakeeper Ride and a Garmin package standard. Its successor, the 2027 257 Explorer, lists from $176,897 with a single Yamaha F300 to $249,803 with twin F250s. Twin-engine boats and those with second stations or towers bring more on resale, and repowered older hulls often trade at a discount to their real usefulness.

Estimated used asking prices by model year, US market, 2026

Estimate your yearly cost

Purchase price Engine hours per year Slip rate per foot per month Fuel price per gallon

A planning estimate using common rules of thumb: insurance near 1.5 percent of value, maintenance near 3 percent, haul out and bottom paint by length. Your marina, region and use will move these numbers. Open the full cost calculator.

Versions and options

2520 XL Sport Cabin: Shallower sister with 16 degrees of deadrise, 5,300 lb, 156 gallons and 450 hp maximum; offered alongside the XLD through at least 2019.
2520 XLD Sport Cabin: 21-degree deep-V, 5,800 lb, 179 gallons and 500 hp maximum; single or twin outboards.
257 Explorer: Renamed successor for 2026 and 2027, keeping the length, fuel tank and horsepower rating and fitting Seakeeper Ride as standard.

Parker 2520 XLD Sport Cabin timeline

2003Parker offers 2520 XL, DV and MV Sport Cabins
20072520 XLD Sport Cabin in Parker's lineup alongside the 2520 XL
2017Parker lists the 2520 XLD with Yamaha F200 XB and F300 UCA packages, alongside the 16-degree 2520 XL
2019Correct Craft buys the company and markets it as Parker Offshore
20252520 XLD SC lists at $204,062 MSRP with Seakeeper Ride 450 standard
2026Model renamed the 257 Explorer

Strengths and weaknesses

What owners like

Deeper 21-degree hull than the XL version
Standing headroom in the pilothouse
Standard plumbed electric head
Single or twin outboard choice
179 gallons of fuel for real range

What to weigh up

9-foot 6-inch beam needs a permit to tow
No published speed and fuel data for the model
Small cabin for overnighting
Prices rose sharply after 2020

Used Parker 2520 XLD Sport Cabin buyer checklist

Take this list to a viewing. Your ticks are saved in this browser so you can come back to it.

Confirm XLD versus XL by deadrise and fuel capacity
Check engine hours and service history on one or both outboards
Inspect pilothouse windows, frames and door seals for leaks
Look for soft spots around the bracket, transom door and cockpit sole
Test the electric head, macerator and holding tank
Cycle the Seakeeper Ride blades or the trim tabs through their full travel
Inspect any tower or second station mounts for cracks

Always commission an independent marine survey and an engine survey before you buy. How a marine survey works.

Rivals to consider

Parker 2820 XLD Sport Cabin

The bigger sister with twin power, a 135-inch cockpit and 232 gallons.

Compare side by side

Parker 2320 Sport Cabin

Smaller, trailerable without permits, single engine only and a portable toilet.

Compare side by side

Grady-White Gulfstream 232

A hardtop walkaround with a softer, more family-focused layout and strong resale.

Compare side by side

C-Dory 25 Cruiser

A more cruising-oriented pilothouse with a galley, but a flatter, less rough-water hull.

Compare side by side

Our verdict on the Parker 2520 XLD Sport Cabin

The Parker 2520 XLD Sport Cabin is the sweet spot of Parker's pilothouse range: big enough for a plumbed head, standing headroom and serious fuel, small enough to run with one engine. The 21-degree XLD hull is the one to buy over the older XL if you fish offshore, and late boats with Seakeeper Ride are noticeably more comfortable. It will not win a beauty contest or a speed run, but as a dry, durable, year-round fishing boat it is very hard to fault.

Parker 2520 XLD Sport Cabin questions answered

What is the difference between the Parker 2520 XL and 2520 XLD?

Both are 25 feet 4 inches long with a 9-foot 6-inch beam, but the XLD has 21 degrees of deadrise, 179 gallons and a 500 hp rating versus 16 degrees, 156 gallons and 450 hp on the XL.

How much did a new Parker 2520 XLD cost?

Parker listed the 2025 model at $204,062 MSRP. Its 2027 successor, the 257 Explorer, starts at $176,897 with a single Yamaha F300.

Does the Parker 2520 XLD have a head?

Yes. The bow cabin has an electric toilet that pumps to a holding tank and can discharge through a macerator.

Can the 2520 XLD run twin engines?

Yes. It is rated for 500 hp, and Parker offered twin Yamaha F150s or F200s as well as single F300 or F350 packages.

What replaced the Parker 2520 XLD Sport Cabin?

Parker now calls it the 257 Explorer for the 2026 and 2027 model years, keeping the length, tankage and horsepower rating and adding Seakeeper Ride as standard.
